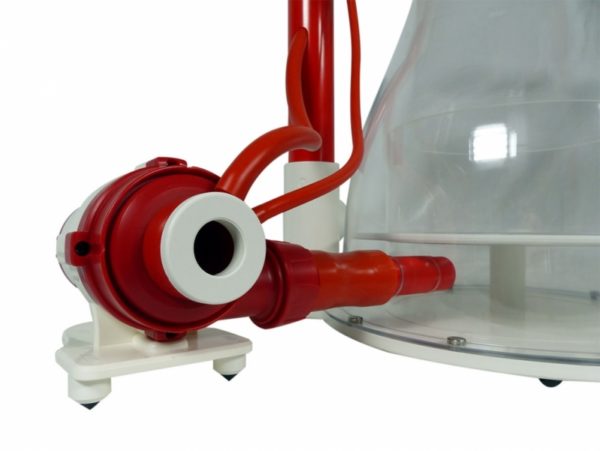

Technical data Red Dragon® X DC skimmer pump:
With needle wheel
adjustable DC-pump with 24V / 60W
Delivery rate: 500-2.500 l/h Air inlet ~ 600-6.500 l/h Water inlet
wattage power: Pmax = 60 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) – Display
Adjustable in 8-steps from ~ 8W up to 63W
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump without controller: 1,25 kg
Height of intake side: center 45 mm
Dimension pump: 90 mm wide / 150 mm length / ~ 130 mm height
Dimension control unit: 30 mm wide / 95 mm length / ~ 105 mm height
Suitable for:
für Bubble King® Double Cone 250 + 300
für Bubble King® SuperMarin 250 + 300
für Bubble King® DeLuxe 250 + 300
Delivery with suitable connection piece
Silicone-decoupling-connection-pieces 32mm
RDX Skimmer Pump – Operating_and_maintenance_manual.pdf
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////
- Saltwater resistant M4 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external power electronics
- High efficient technology, Sine Wave for very quiet running
- Inlet and Outlet complete with DIN connection, compact dimensions
- Easy usage and maintenance, low risk of calcification
- compact design against vibrations and oscillation
- CE conformity, developed and built

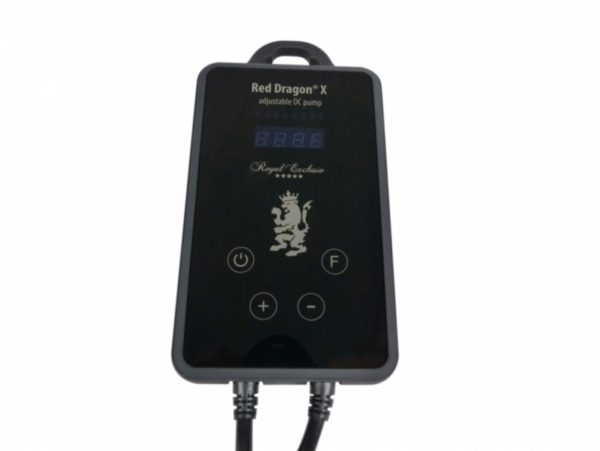

- high quality touchscreen display with feeding function
(protection against dry-running, over heating, over voltage, blocking etc.) - included in the scope of delivery:
- Pump with 2m supply line
- Controller with 1,5m supply line
- Power plug with 1,5m supply line / rubber connector
- with inlet protection
- with 20mm socket and 25mm socket with O-rings
- Manual German/English
