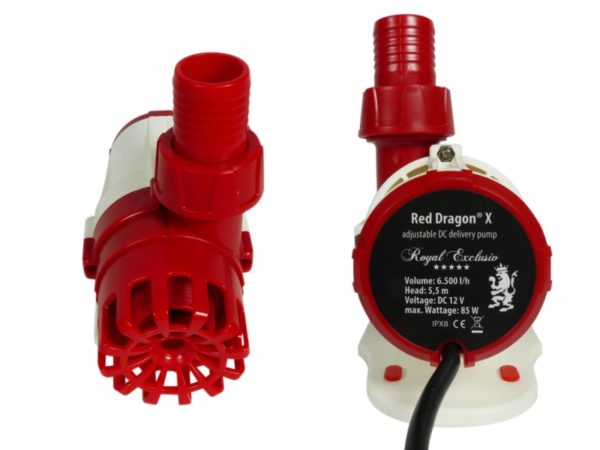

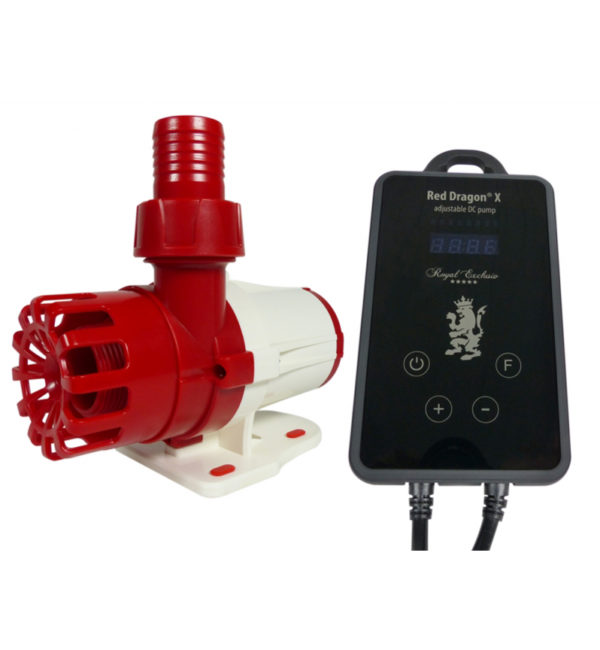

Technical data Red Dragon® X pump 85 Watt 6,5 m³:

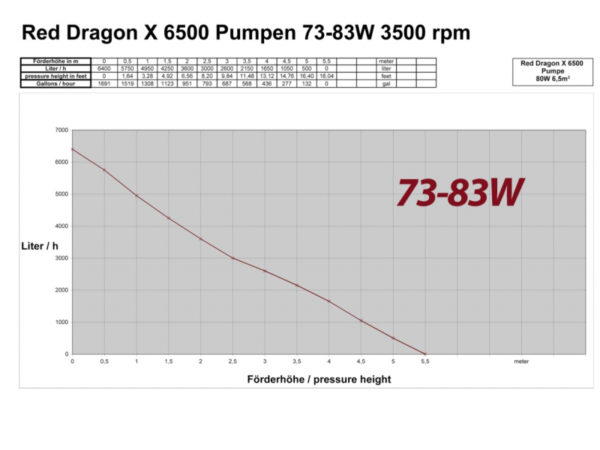

max. 85 Watt/h 5,5 mtr. pressure height
Speed adjustable Brushless DC pump
Revolution per minute (rpm) – Display
Adjustable in 8-steps from 8W up to 83W
intake side 32 mm (1″) – pressure side 32 mm (1″)
Operating voltage: 100-240 Volt 50-60 Hz (12V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump without controller: 1,25 kg
Height of intake side: center 55 mm
Dimension pump: 90 mm wide / 170 (150 without inlet protection) mm length / ~ 130 (165 with socket) mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
Operating_and_maintenance_manual.pdf
- Saltwater resistant M4 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external power electronics
- High efficient technology, Sine Wave for very quiet running

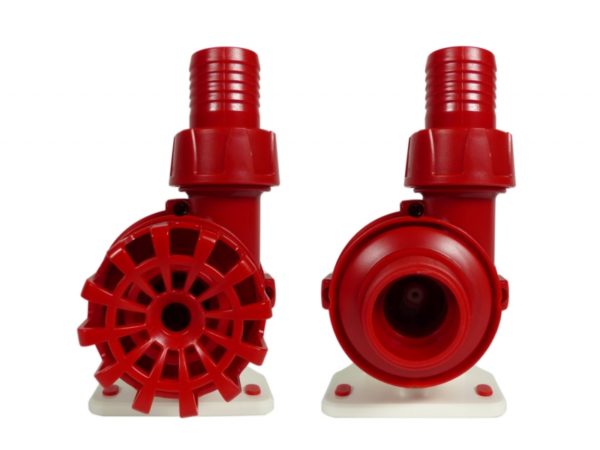

- Inlet and Outlet complete with DIN connection, compact dimensions
- Easy usage and maintenance, low risk of calcification
- compact design against vibrations and oscillation
- CE conformity, developed and built

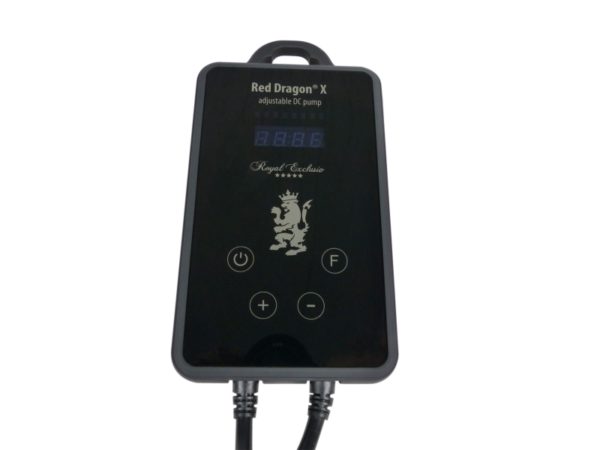

- high quality touchscreen display with feeding function
(protection against dry-running, over heating, over voltage, blocking etc.) - included in the scope of delivery:
- Pump with 2m supply line
- Controller with 1,5m supply line
- Power plug with 1,5m supply line / rubber connector
- with inlet protection
- with 25mm socket and 32mm socket with O-rings
- Manual German/English
