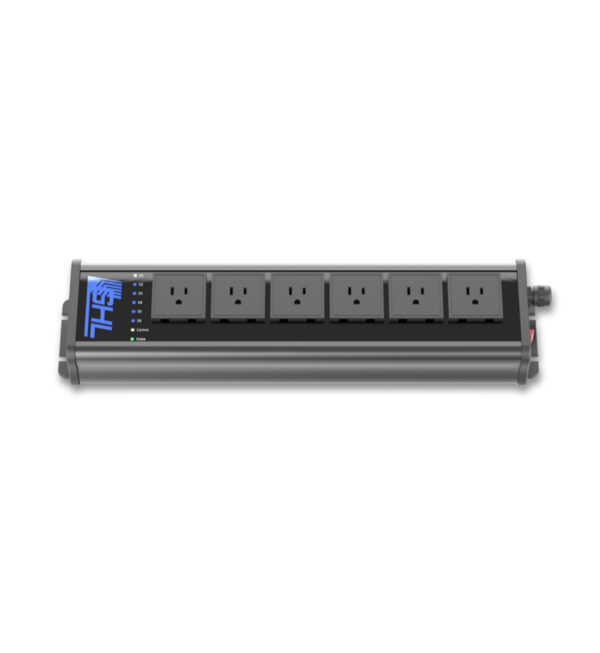

Powerbar 6E-PAB
Powerbar 6E-PAB

Powerbar 6E-PAB

$269.90

Digital powerbar for PAB, 6 sockets switchable, switch with integrated fuse.

This item ships directly from the manufacturer/supplier.

Availability: 7 in stock

Connected to PAB-Port of the ProfiLux.

The Powerbar 6E-PAB offers 6 switchable sockets.

The ProfiLux Aquatic Bus enables secure and reliable communication with ProfiLux. An illuminated fused switch together with LED indicators provide you with the complete package and utmost level of safety.

Also the power consumption of individual loads per socket can be measured separately (versions with PAB only)The integrated LEDs indicate the switching status of the individual outlets.

Powerbars 6E-PAB can be daisy-chained.

Dimensions

Max. dimensions (L x W x H) incl. sockets and mounting brackets, without cable: 47.0 cm x 11.2 cm x 10.0 cm (18.5″ x 4.4″ x 3.9″)

Maximum current in total / per socket: 15 A / 15A

*PAB cable NOT included

GHL Powerbars

Specially developed for Aquatics

The perfect and safe functioning of the powerbars in an aquarium controller system is of essential importance. A malfunction of the powerbar can lead to significant damage of the aquarium, therefore highest production quality and intelligent safety functions are indispensable.

GHL Powerbars feature on/off switching of electrical loads for components such as heaters, cooling devices, solenoid valves for CO2 control, or stream pumps.

Our Powerbars are designed specially for the aquarium hobby and produced to the highest quality and security standards. All used components are UL-certified and flame retardant.

Mounting holes are conveniently placed on the side or back (depending on the model) for easy installation of the Powerbars on walls or in aquarium cabinets.

Switching safely

Depending on the ProfiLux model, up to 64 switchable sockets and a maximum of 32 dimmable sockets can be controlled separately.

For switching we use in all powerbar models extremely robust and reliable HIC (High Inrush Current) industry-relays instead of cheap semiconductors. These relays are specified for 16 A @ 250 VAC and are able to withstand even up to 160 A for a short while, switching of critial loads such as MH-ballasts, switching power supplies or large chillers is no problem at all.

Also the power consumption of individual loads per socket can be measured separately (versions with PAB only). The integrated LEDs indicate the switching status of the individual outlets. Fuses protect the powerbars against overload (depending on version).

Our Powerbars are available with the following plugs and sockets: Schuko (Germany, Austria, etc.), Switzerland, Belgium / France, UK, USA / Canada.

About

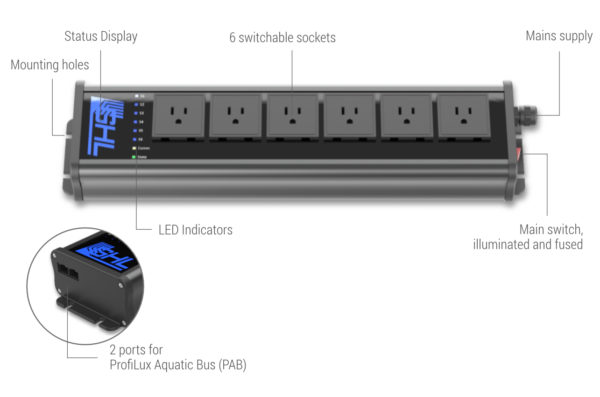

Features and Specifications

  • 6 independently switchable sockets with a continuous current of max. 15A each (depending on country version)
  • Extremely robust high-inrush current (HIC) industrial relays: Each relay is designed for a continuous current of 16A and a short-term peak current of 160A
  • Current measurement per socket to monitor the connected equipment
  • Illuminated logo, different colors and flashing codes provide information about the current system status at a glance
  • 2 ProfiLux Aquatic Bus (PAB) connections for reliable communication with ProfiLux aquarium controller and other system components
  • Status LEDs for communication, operation and switching status of the individual sockets
  • Switch with integrated fuse
  • Heavy-duty, grounded power cord, 1.80m / 6 feet long
  • Fallback fail-safe setting: In the event of a communication problem between ProfiLux and the Powerbar, each socket takes a user-defined state.
  • Robust side mounting brackets
  • Practical arrangement of the sockets: The arrangement in a row and the distance between the sockets make it possible to plug in almost all devices (even bulky power supplies) at any position. In contrast to multi-row Powerbars, the single-row arrangement allows simple and tidy cabling.

Warranty

GHL provides a 24-month limited warranty against all processing and material defects. Warranty period begins at the date of purchase.
