Technical data:

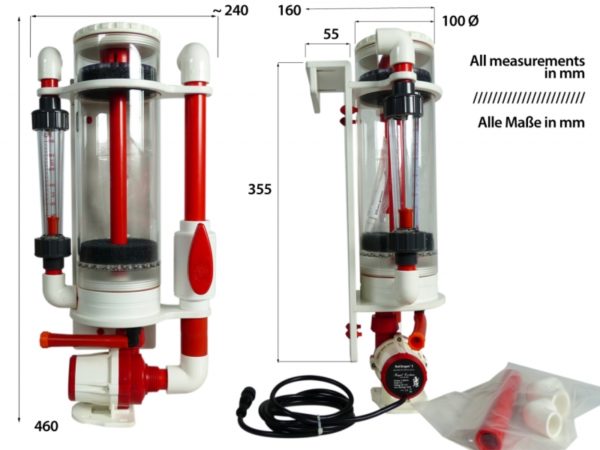

Dimensions: Ø 100mm (tube) // 100mm (cup) // 460mm x ~ 230 – 250mm x 160mm (Height x Width x Depth)
Volume: ~ 2.0 liters /// 1.8l (media)
With heavy bottom, for hang on at the tank, Red Dragon® X 40 Watt / 3m³

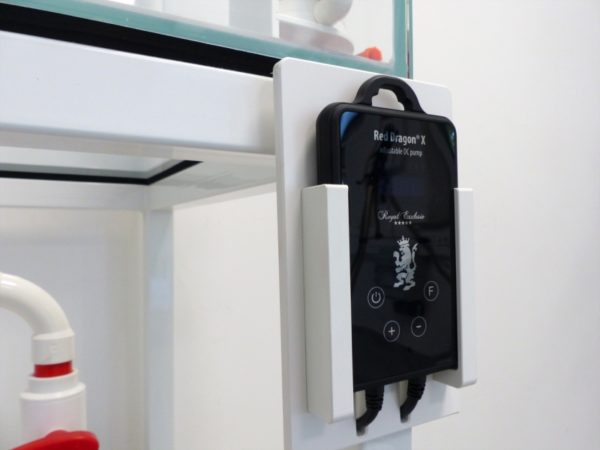

Completely disassemble possible, top and bottom threads. (without holder for Controller)
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

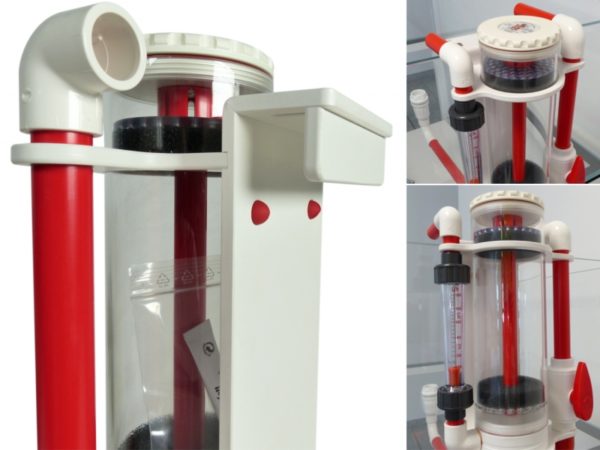

Media filter made of PVC an high quality acryl-glass / Plexiglas®
- universal usable as media filter for differ medias
- Inclusive flowmeter with Titan leading spindle

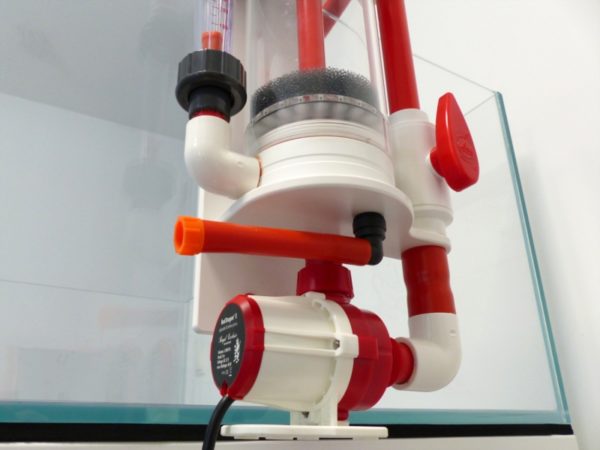

- Inclusive adjustable Red Dragon® X 40 Watt / 3m³ 12 Volt DC pump and valve for fine adjustment
- With Silicone decoupler 30 Shore hardness against the window and Silicone decoupler 32mm at outlet piping
- The 100 mm Acryl Media – pipe is demountable
- All O-Rings made of Silicone 30 Shore hardness
- Moving carrier plate on the top, fixed with 2 x M6 Titan screw
- Ø 25mm Inlet, Ø 20mm Outlet, inkl. connection piping
- high quality rigid PVC and Plexiglas® (plexiglass)
- 100% Made in Germany / assembly by hand
- 30 Years of experience in PVC filter and skimmer construction
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
The flow rates of the media-filter per hour (recommended):
100mm = 2.0l approx. 1000 – 1500 l/h
The media filter is optimal for the use of RE-Carbon // aktive carbon.
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
