Technical data:

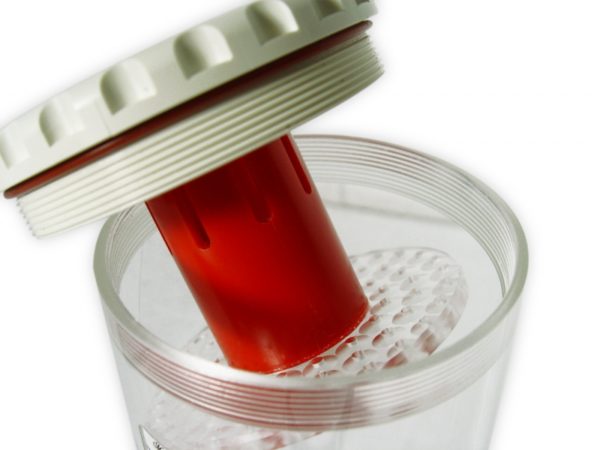

The space saving version, internal screw thread

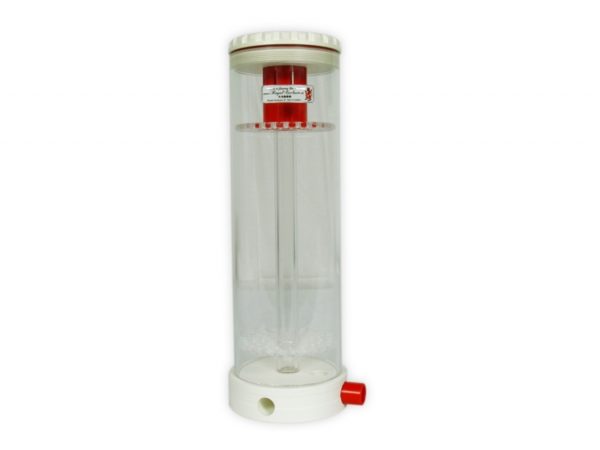

Dimensions: Ø 3.93″ (100mm)tube x 4.33″ (110mm)bottom x ~ 13.19″ (335mm) height
Volume: ~ 0.58 gallons / 2.2 liters
Media filter made of PVC an high quality acryl-glass / Plexiglas®
- including pipe breakthroughs
outer Ø 1/2″ (20mm) - universal usable as media filter for differ medias
- on request: assembly into your Dreambox (only by buying a new system)
optional internal tubbing/piping: Extra charge + 125,-€
optional external tubbing/piping: Extra charge + 145,-€ - high quality rigid PVC and Plexiglas® (plexiglass)
- 100% Made in Germany / assembly by hand
- 25 Years of experience in PVC filter and skimmer construction
The flow rates of the media-filter per hour (recommended):
3.15″ (80mm) = 0.4 gallons (1.5l) approx. 132-264 gph (500-1000 l/h)
3.94″ (100mm) = 0.5 gallons (2.0l) approx. 264-396 gph (1000-1500 l/h)
4.92″ (125mm) = 0.9 gallons (3.5l) approx. 528-660 gph 2000- 2500 l/h
5.91″ (150mm) = 1.3 gallons (5.0l) approx. 660-925 gph (2500-3500 l/h)
Example: 4.92″ (125mm) with a MRD 2500 limited/controlled by of ball valve. So, the motion of the pellets should look like this: play video!
