Dreambox 2.0 Filter Systems (filter socks)

Custom sump manufactured in Germany. Dreambox 2.0 filter systems come with filter socks. Complete sets include skimmer, return pump(s), media reactor and other add-on options.

Note: Freight costs may exceed $2K. Serious inquiries ONLY! Special Order – Please contact us for more information and/or a price quote

Overview list of all available Dreambox – filter – systems 2.0 (Filter socks). Pricing does not include skimmers, pumps and other add-on equipment.

pdf_icon  Dreamboxes_overview_list.pdf pdf_icon  Which skimmer fits in which Dreambox?

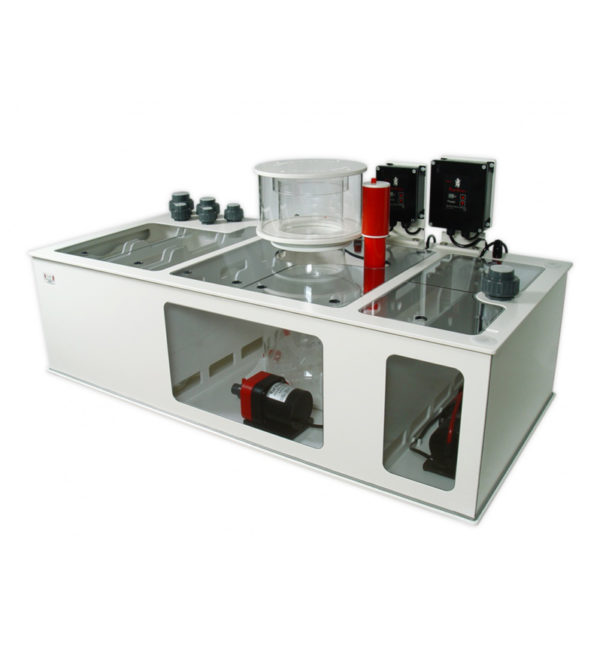

Specifications for a Dreambox 2.0 Sample Set (5d)

Includes

  • Bubble King® Supermarin 200 + RD3 skimmer
  • Red Dragon® 3 Speedy – return-pump 150W
  • Dreambox® Media- and Pellet-filters each 2 liter

Technical data Dreambox size S:
Dimensions: 125cm wide x 49 cm length x 35 cm height (62 cm skimmer height)
Volume: ~  190 Liter

  • high quality rigid PVC and Plexiglas® (plexiglass)
  • hot gas welded not glued,
    plastic welding never leak as like glass filter cases with silicone gaskets
  • significantly sturdily, shock proof and lower weight compared to glass
  • 8 mm thickness of PVC and Plexiglas® (plexiglass)
  • extremely noise-dampening by construction
  • fully prepared for the upgrade with media filters
  • filter socks in different grain sizes available,
    adapt to your own needs and desired
     properties of water possible
  • crystal clear fine filtration according to customer’s wishes and needs
  • Intelligent forced water supply by all chambers
  • inside spill safe by integrated CNC milled emergency overflows, even with 100% blockage of the filter socks are forwarding into the next Chamber
  • Sea-waterproof titanium bolts
  • by various options can be upgraded to the high-tech filter tank
  • precise CNC milled cover preparation and adaptation for new purchase of a Royal-Exclusiv® skimmers
  • from 100 cm box with oxygen degassing Chamber
  • from 60 cm box with water level regulation for skimming Chamber,.
    Water level adjustable from 14 cm-23 cm
  • 100% Made in Germany / Assembly by hand
  • with DIN connectors/tubes
  • 30 Years of experience in PVC filter and skimmer construction

Dreambox inclusive:

LED lighting complete
CNC Milled cover suitable for BK SM 200 skimmer

2x Controller holder (50/150W)

With skimmer Bubble King Supermarin® 200 RD3
for aquariums/tanks from 210 – 530 gallons (800 liter – 2000 liter)

hard facts Bubble King® Supermarin 200 RD3 internal:
adjustable Red Dragon® 3  Mini Speedy skimmer pump 50 Watt   396 gph Air (1500 l/h)
Motor speed adjustable: 400-4000 1/min
Base plate: 8.66ʺ x 8.66ʺ / height ~ 24.41ʺ (22 cm x 22 cm / height ~ 62 cm)

Technical data Bubble King® Supermarin 200 RD3 internal:
396 gph Air – 793 gph Water = 1 Red Dragon® 3 Mini Speedy pump 50 Watt
max. 50 Watt/h, adjustable 15-50 Watt   //   speed adjustable Brushless DC pump
Delivery rate adjustable: max. ~ 396 gph (1500 l/h) Air and max. ~ 793 gph  (3000 l/h) Water inlet
wattage – active power: P = min. 15 Watt/h  –  max. 50 Watt/h
operating voltage: 110 Volt 60 Hz
Protection class: IP 68

Water level: ~ 7.09ʺ up to ~ 9.06ʺ (ideal ~ 7.87ʺ)     (~ 180 mm up to ~ 230 mm)
Weight skimmer: 11 kg inclusiv pump

Dimension skimmer without pump:
11.42ʺ wide / 9.45ʺ length / ~ 24.41ʺ height
Dimension skimmer with master pump (90° to torque tube):
12.6ʺ wide / 16.54ʺ length / ~ 24.41ʺ height
Dimension skimmer with master pump (compared with torque tube):
19.29ʺ wide / 9.49ʺ length / ~ 24.41ʺ height
Height silicon outlet (cleanout) ~ 14.96ʺ
19.29ʺ wide / 9.49ʺ length / ~ 24.41ʺ height
Height silicon outlet (cleanout) ~ 14.96ʺ

Dimension skimmer without pump:
290 mm wide / 240 mm length / ~ 620 mm height
Dimension skimmer with pump (90 ° to torque tube):
320 mm wide / 420 mm length / ~ 620 mm height
Dimension skimmer with pump (compared with torque tube):
490 mm wide / 240 mm length / ~ 620 mm height

pdf_icon  Data_sheet_and_spare_parts.pdf   pdf_icon  Operating_and_maintenance_manual.pdf
pdf_icon  RD3_Data_sheet_and_spare_parts.pdf
pdf_icon  RD3_Operating_and_maintenance_manual.pdf

Red Dragon® 3 Speedy pump 150 Watt / 4755 gph (18m³) AKB anti-lime-bypass
with 10V connection

Technical data  Red Dragon® 3 Speedy pump 150 Watt 18,0 m³:
150 Watt/h 226″ (5,75 mtr.) pressure height
speed adjustable brushless DC pump
Watt-Display at the controller /// in 2Watt steps adjustable
intake side 1.5″ (50 mm) – pressure side 1.25″ (40 mm)
operating voltage: 110 Volt 60 Hz
pump and controller with a removeable Hirschmann-plug-connection
Protection class pump: IP 68  control unit: IP 66
Weight pump: 3,5 kg
Weight controller: 1,2kg
Height of intake side: center 70 mm
Dimension pump: ~ 130 mm wide / 290 mm length / 210 mm height
Dimension control unit: ~ 190 mm wide / 168 mm length (250 mm with connection cable) / 84 mm height

pdf_icon  Data_sheet_and_spare_parts.pdf   pdf_icon  Operating_and_maintenance_manual.pdf

  • Saltwater resistant M6 grade 2 titanium screws
  • Saltwater resistant parabolic rubber feet for acoustic decoupling
  • Extreme low noise brushless dc-delivery pump with grouted power electronics
  • High efficient technology “Made in Germany”
  • Inlet and Outlet complete with DIN connection, compact dimensions
  • High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
  • Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
  • Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
  • Heavy and massive craftsmanship against vibrations and oscillation
  • CE conformity, developed and built according to VDE guidelines

/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

Extensive function integrated in the controller:

1. Food timer
By selecting the menu entry, the pump is reduced to minimum output for a pre-defined period of 1-30 minutes or switched off completely.

2. Manual
This function enables manual selection of the pump output. The value can be set in increments of 2W (10W). By holding the UP or DOWN key, the highest or lowest possible value is activated (150W/20W).

3. Interval
This function enables changing the pump output in time intervals.

4. Remote 10V
This function activates control via the 10V input.

5. Remote LAN
This function activates the control via the future LAN adapter.

Change functions:

6. Changing food timer
By selecting this change function, the time of the food timer can be pre-set at a range of one minute to 30 minutes (UP/DOWN arrow keys).

7. Changing interval
By selecting this change function, you can enter the interval time.

8. Change clock settings
By selecting this change function, you can set the clock.

9. Change language
By selecting this change function, you can set the menu language. (german/english).

/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

The control/connection of Aquarium computer possible!
Prepared for connection to an aquarium computer (E.g. GHL) via a 0-10V interface.

No additional controller needed.

Tested so far folowing these computers:
GHL ProfiLux 3.1 and from Neptune Systems the Apex Aqua Controller.

Compatible with following brands:
ghl logoneptune systems logoreef ai logo

https://www.aquariumcomputer.com/
http://www.neptunesystems.com/
https://www.reefai.com/

//////////////////////////////////////////////////////////////////////////////

Functioning of the electronics:
Once a voltage > 0,5V to the 10V interface is, the interface adapter takes over controlling and the system and lock(disable) the buttons on the controller. Voltage will be < 0,5V normal controller operation and the buttons are again released. So can the interface adapter stay connected without performing a function.

If the Aquarium(tank)-computer voltage under 0,5V the 0-10V interface is shut down and the pump can be operated manually. From 0,5V, the interface will take over control of the scheme. In the area of 0,5V-0,8V the pump is switched off. From ~ 0,8V starts the pump at the lowest level (20W) and run. At an increase of 0,5V will increase the level, also. So 1V = 20W ….. 9V = 150W.

At a higher input voltage remains the Speedy controller to the maximum setting are available and no longer increases. The interface adapter behaves as if the corresponding would push the button.

Dreambox® – media filter 2 liter – SpaceSaver DeLuxe – the space wonder

Technical data:
The space saving version, internal screw thread
Dimensions: Ø 3.93″ (100mm)tube x 4.33″ (110mm)bottom  x ~ 13.19″ (335mm) height
Volume:  ~ 0.58 gallons / 2.2 liters

Media filter made of PVC an high quality acryl-glass / Plexiglas®

  • including pipe breakthroughs
    outer Ø 3/4″ (20mm)
  • universal usable as media filter for differ medias
  • on request: assembly into your Dreambox (only by buying a new system)
    optional internal tubbing/piping:  Extra charge + 125,-€
    optional external tubbing/piping:  Extra charge + 145,-€
  • high quality rigid PVC and Plexiglas® (plexiglass)
  • 100% Made in Germany / assembly by hand
  • 30 Years of experience in PVC filter and skimmer construction

Dreambox® – pellet filter 2 liter – SpaceSaver DeLuxe – the space wonder

Technical data:
The space saving version, internal screw thread
Dimensions: Ø 3.93″ (100mm)tube x 4.33″ (110mm)bottom  x ~ 13.19″ (335mm) height
Volume:  ~ Ø 3.94″ tube ~ 0.5 gallons / 2 liter volume

Media filter made of PVC an high quality acryl-glass / Plexiglas®

  • including pipe breakthroughs
    outer Ø 3/4″ (20mm)
  • universal usable as media filter for differ medias
  • on request: assembly into your Dreambox (only by buying a new system)
    optional internal tubbing/piping:  Extra charge + 125,-€
    optional external tubbing/piping:  Extra charge + 145,-€
  • high quality rigid PVC and Plexiglas® (plexiglass)
  • 100% Made in Germany / assembly by hand
  • 30 Years of experience in PVC filter and skimmer construction

With Dreambox – media filter AND pellet filter internal tubbing/piping
Inclusive 2x ball valve and anti-vibration set, feeding via return pump
