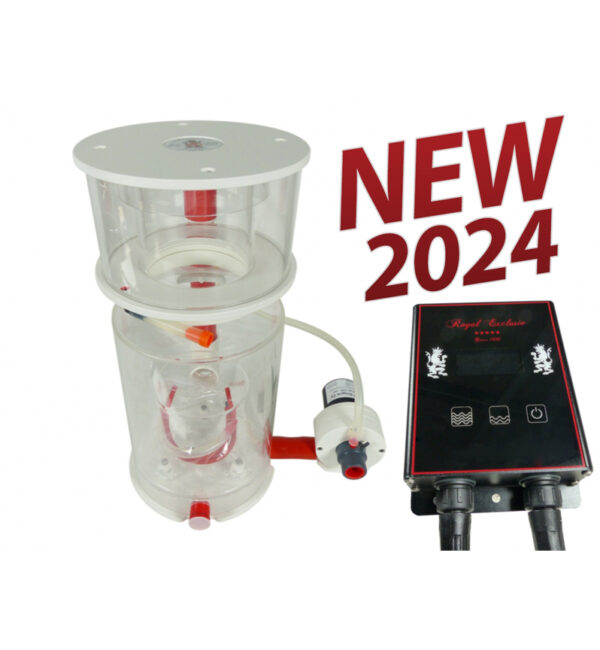

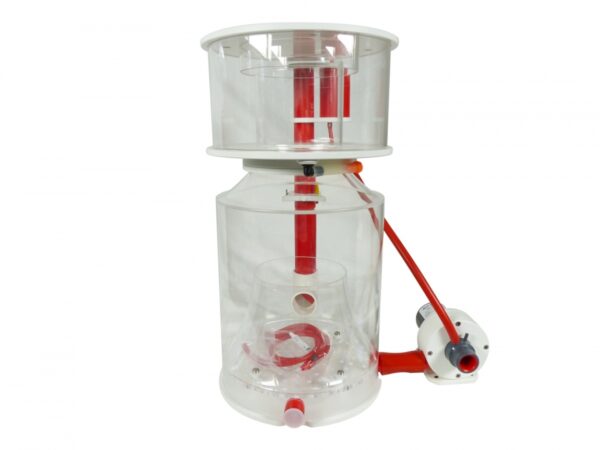

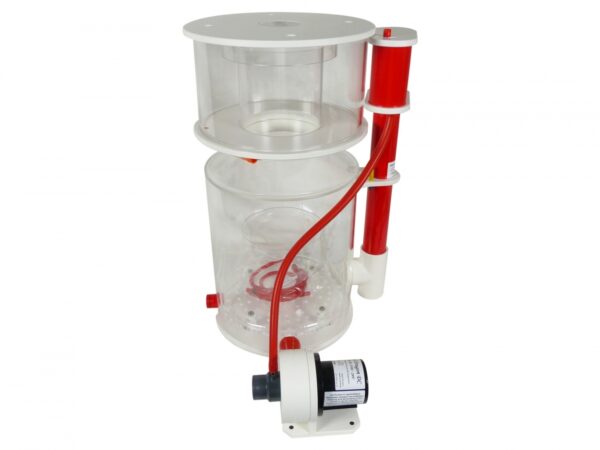

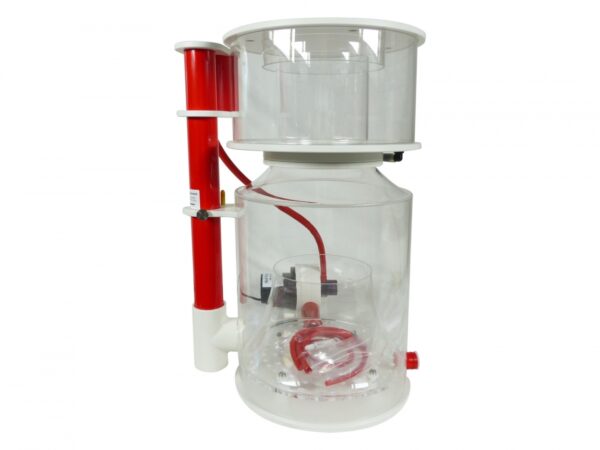

Hard Facts Bubble King® Supermarin 300 BK DC 24V:
max. 660GPH (2.500 l/h) Air – 2.000 GPH (7.500 l/h) Water = 1 (Bubble King®) BK2500 DC 24V

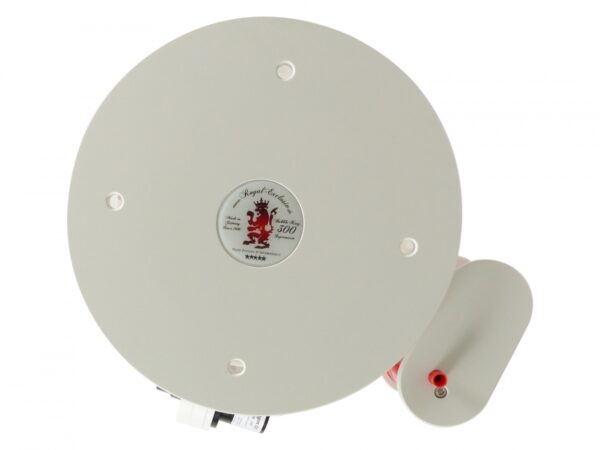

Base plate: Ø 12.60ʺ / height ~ 24.8ʺ (Ø 32 cm / height ~ 63 cm)
Weight skimmer: 15 kg inclusiv pumps
Water level: ~ 7.08″ (180 mm) up to ~ 9.06″ (230 mm)
Technical data Bubble King® Supermarin 300 BK DC 24V:
1 x Skimmer-pump: Bubble King® 2500 DC

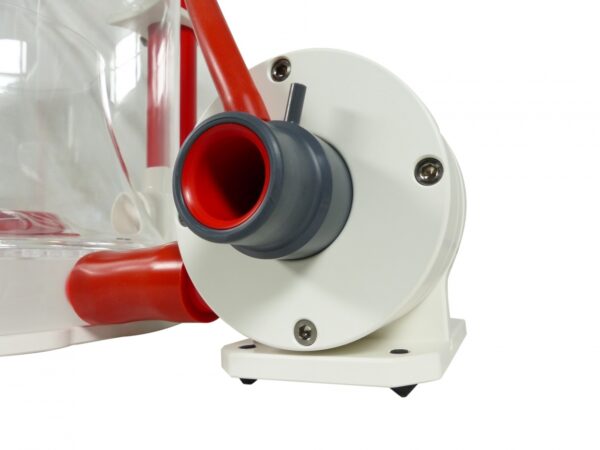

Technical data Red Dragon® Bubble King® DC skimmer pump:
With needle wheel
adjustable DC-pump with 24V / 67W
Delivery rate: max. 2.500 l/h Air inlet ~ 7.500 l/h Water inlet
Wattage – active power: P max. 67 Watt/h
Removable controller and power supply
Cable length pump – controller: ~ 3 m
Cable length controller – power supply: ~ 1,5 m
Operating voltage: 100 – 240 Volt 50/60 Hz
Protection class: IP 68 pump
Dimension skimmer without pump:
380 mm wide / 340 mm length / ~ 630 mm height
Dimension skimmer with pump (90 ° to torque tube):
520 mm wide / 400 mm length / ~ 630 mm height
Dimension skimmer with pump (compared with torque tube):
590 mm wide / 350 mm length / ~ 630 mm height
Height silicon outlet (cleanout) ~ 400 mm
Dimension skimmer without pump:
14.96ʺ wide / 13.39ʺ length / ~ 24.8ʺ height
Dimension skimmer with master pump (90° to torque tube):
20.47ʺ wide / 15.75ʺ length / ~ 24.8ʺ height
Dimension skimmer with master pump (compared with torque tube):
23.23ʺ wide / 13.78ʺ length / ~ 24.8ʺ height
Height silicon outlet (cleanout) ~ 15.75ʺ
