Technical data interface adapter Red Dragon® 3 Speedy pump 50/60/80/100W :
for the connection of your Red Dragon® 3 pump with 10V connection to your aquarium-computer/controller with all necessary connection-cables. Ready for use
Contents of delivery:
- 1x Controller-box with the option of wall mounting
- 1x Power supply with the right voltage-adapter 110/230V
- 1x Connection-cable for Computer/Controller (approx. 2,0m)

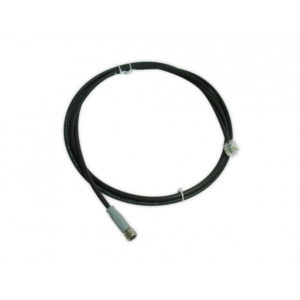

- 1x Connection-cable for Controller of the pump (approx. 3,5m)
Dimension controller: 145 mm length / 85 mm wide / ~ 55 mm height
Operating_and_maintenance_manual.pdf
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

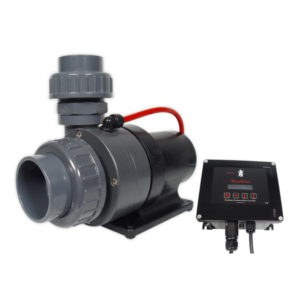

Use the RD3 pump as a circulation pump!
Watch, how it works! Link to the video.
This controller allows a connection to an aquarium computer (E.g. GHL) via a 0-10V interface.
Please choose your right voltage (120V or 230V) and connection-cable (Apex/ReefAi or GHL)!
Tested so far following these computers:
GHL ProfiLux and from Neptune Systems the Apex Aqua Controller.
Compatible with following brands:
https://www.aquariumcomputer.com/
http://www.neptunesystems.com/
https://www.reefai.com/
//////////////////////////////////////////////////////////////////////////////
The pulsing is in 5s intervals possible.
Functioning of the electronics:
Once a voltage > 0,5V to the 10V interface is, the interface adapter takes over controlling and the system and lock(disable) the buttons on the controller. Voltage will be < 0,5V normal controller operation and the buttons are again released. So can the interface adapter stay connected without performing a function.
If the Aquarium(tank)-computer voltage under 0,5V the 0-10V interface is shut down and the pump can be operated manually. From 0,5V, the interface will take over control of the scheme. In the area of 0,5V-0,8V the pump is switched off. 1V starts the pump at the lowest level (15W) and run. At an increase of 0,5V will increase the level, also. So 1V = 15W 1,5V = 20W 2V = 25W….. 7,5V = 80W.
At a higher input voltage remains the Speedy controller to the maximum setting are available and no longer increases. The interface adapter behaves as if the corresponding would push the button.
