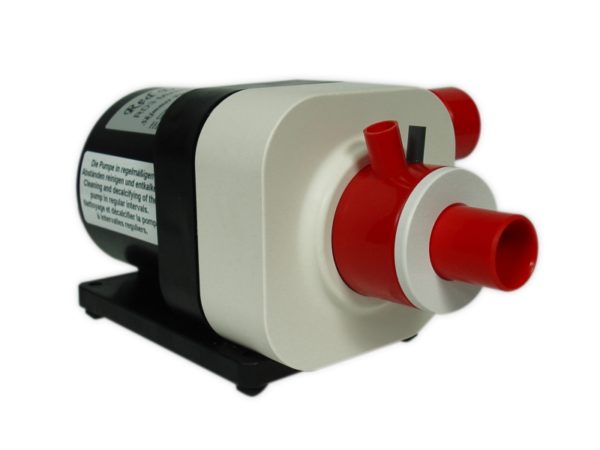

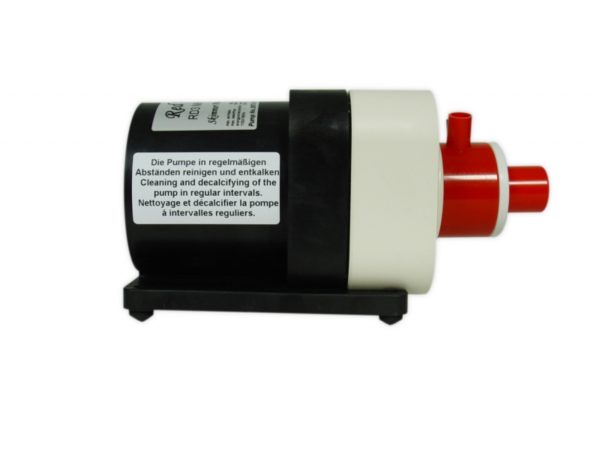

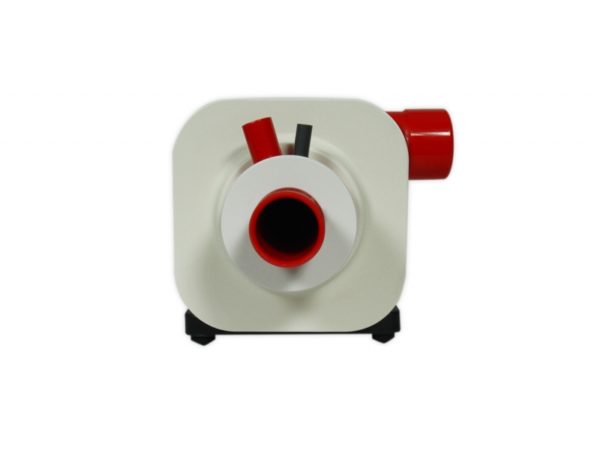

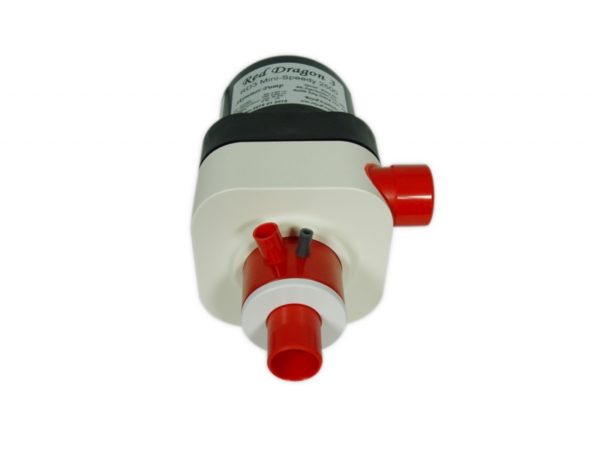

Red Dragon® 3 Mini Speedy 60 Watt 2500 l/h

$835.02$863.50

This item ships directly from the manufacturer/supplier.

Clear

Technical data  Red Dragon® 3 Mini Speedy pump 60 Watt / 2500 l/h air intake:

Bubble King® Supermarin 250 VS15
Bubble King® Supermarin 300 with 1 pump VS15

max. 60 Watt/h, adjustable 20-60 Watt
speed adjustable Brushless DC pump
Watt- and Percent- Display
Intake side: Nozzle with ozone & air plug
Pressure side: Ø 32 mm
Delivery rate: from 800 to max. 2500 l/h air-intake // from 1.500 to max. 6000 l/h water-intake
Operating voltage: 110 Volt 60 Hz  (also in 230V/50Hz available)
Protection class pump: IP 68  control unit: IP 66
Weight pump: 3,5 kg
Height of intake side: center 60 mm
Dimension pump: 100 mm wide / 160 mm length / ~ 140 mm height
Dimension control unit: 120 mm wide / 160 mm length / ~ 65 mm height

pdf_icon  Data_sheet_and_spare_parts.pdf   pdf_icon  Operating_and_maintenance_manual.pdf

  • Saltwater resistant M6 grade 2 titanium screws
  • Saltwater resistant parabolic rubber feet for acoustic decoupling
  • Extreme low noise brushless dc-delivery pump with grouted power electronics
  • High efficient technology “Made in Germany”
  • compact dimensions
  • High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
  • Only saltwater resistant pump with titanium rotor, titanium stator and shriveled bearings
  • Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purging
  • Heavy and massive craftsmanship against vibrations and oscillation
  • CE conformity, developed and built according to VDE guidelines

Technical data Red Dragon® 3 Mini Speedy pump 60 Watt / 2500 l/h air intake:

Bubble King® DeLuxe 250 intern Incl. pump table
Bubble King® DeLuxe 300 intern(only new model VS13) Incl. pump table

max. 60 Watt/h, adjustable 15-60 Watt
speed adjustable Brushless DC pump
Watt- and Percent- Display
Intake side: Nozzle with ozone & air plug
Pressure side: Ø 32 mm
Delivery rate: from 800 to max. 2500 l/h air-intake // from 1.500 to max. 6000 l/h water-intake
Operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available)
Protection class pump: IP 68 control unit: IP 66
Weight pump: 3,75 kg
Height of intake side: center 60 mm
Dimension pump: 100 mm wide / 230 mm length / ~ 140 mm height
Dimension control unit: 120 mm wide / 160 mm length / ~ 65 mm height

/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
The connection of a controller/computer is prepared in each pump!
Prepared for connection to an aquarium computer (E.g. GHL) via a 0-10V interface.
The additional controller, for the connection to the computer, costs 159€ (incl. all connection cables and main adaptor)

Tested so far folowing these computers:
GHL ProfiLux 3.1 and from Neptune Systems the Apex Aqua Controller.

Compatible with following brands:
ghl logoneptune systems logoreef ai logo

https://www.aquariumcomputer.com/
http://www.neptunesystems.com/
https://www.reefai.com/

//////////////////////////////////////////////////////////////////////////////

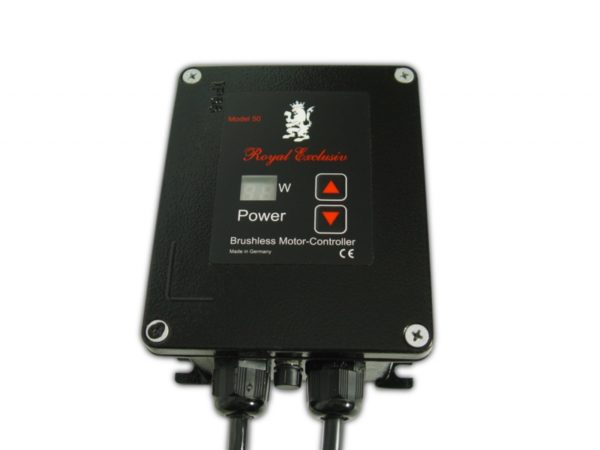

Functioning of the electronics:
Once a voltage > 0,5V to the 10V interface is, the interface adapter takes over controlling and the system and lock(disable) the buttons on the controller. Voltage will be < 0,5V normal controller operation and the buttons are again released. So can the interface adapter stay connected without performing a function.

If the Aquarium(tank)-computer voltage under 0,5V the 0-10V interface is shut down and the pump can be operated manually. From 0,5V, the interface will take over control of the scheme. In the area of 0,5V-0,8V the pump is switched off. 1V starts the pump at the lowest level (15W) and run. At an increase of 0,5V will increase the level, also. So 1V = 15W 1,5V = 20W 2V = 25W….. 6,0V = 60W.

At a higher input voltage remains the Speedy controller to the maximum setting are available and no longer increases. The interface adapter behaves as if the corresponding would push the button.
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////

For Use With

Bubble King® DeLuxe 250 + 300, Bubble King® Supermarin 250 VS15, Bubble King® Supermarin 300 with 1 pump VS15
