COMPACT Dreambox Cartridge Media Filter 100mm SINGLE 2.0L Red Dragon® X 40 Watt

$406.72

This item ships directly from the manufacturer/supplier.

Availability: 10 in stock

Technical data:

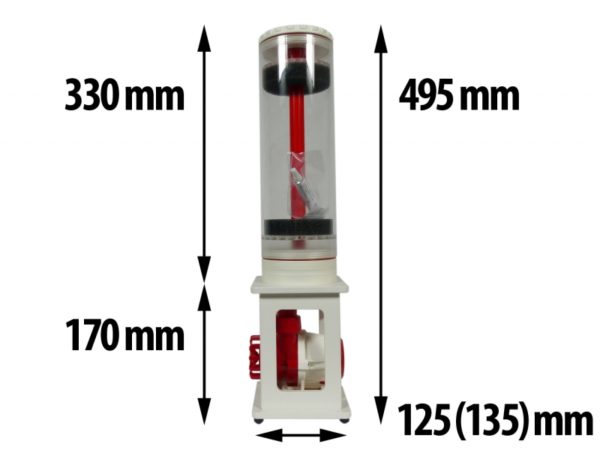

Dimensions: Ø 100 mm (tube) // 100 mm (cup) 120 mm x 120 mm (podium)  x ~ 495mm height
Volume:  ~ 2.0 liters  /// 1.8l (media)
With heavy bottom, completely disassemble possible, top and bottom threads.
Red Dragon® X 40 Watt / 3m³ complete decoupled with controller adjustable in 16 steps.

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

Media filter made of PVC an high quality acryl-glass / Plexiglas®

  • including pipe breakthroughs
    outer Ø 20mm
  • universal usable as media filter for differ medias
  • high quality rigid PVC and Plexiglas® (plexiglass)
  • 100% Made in Germany / assembly by hand
  • 30 Years of experience in PVC filter and skimmer construction

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

The flow rates of the media-filter per hour (recommended):
100mm = 2.0l approx. 1000 – 1500 l/h

Example: 125mm TRIPLE Media-reactor/filter with a Red Dragon® Speedy 3 with 80W limited/controlled of 15W. Play Video!

The media filter is optimal for the use of RE-Carbon // aktive carbon.

Red Dragon® X pump 40 Watt / 3m³ / 12V

Technical data Red Dragon® X pump 40 Watt 3,5 m³:
max. 40 Watt/h  3,75 mtr. pressure height
Speed adjustable Brushless DC pump
Revolution per minute (rpm) – Display
Adjustable in 16-steps from ~ 7W up to 40W
Intake side 25 mm (0.75″) – pressure side 25 mm (0.75″)
Operating voltage: 100-240 Volt 50-60 Hz (12V Technology)
Protection class pump: IP 68  control unit: IP 66
Weight pump without controller: 0,6 kg
Height of intake side: center 45 mm
Dimension pump: 80 mm wide / 130 (120 without inlet protection) mm length / ~ 110 (135 with socket) mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height

pdf_icon  Operating_and_maintenance_manual.pdf

  • Saltwater resistant M4 grade 2 titanium screws
  • Saltwater resistant parabolic rubber feet for acoustic decoupling
  • Extreme low noise brushless DC-delivery pump with external power electronics
  • High efficient technology, Sine Wave for very quiet running
  • Inlet and Outlet complete with DIN connection, compact dimensions
  • Easy usage and maintenance, low risk of calcification
  • compact design against vibrations and oscillation
  • CE conformity, developed and built
  • high quality touchscreen display with feeding function
    (protection against dry-running, over heating, over voltage, blocking etc.)
  • included in the scope of delivery:
    • Pump with 2m supply line
    • Controller with 1,5m supply line
    • Power plug with 1,5m supply line / rubber connector
    • with inlet protection
    • with 20mm socket and 25mm socket with O-rings
    • Manual German/English
